Wood Hatch Patterns - Pack 1
A collection of 7 wood hatch patterns that can be used in any CAD software that reads .pat file formats, such as Revit, AutoCAD, or Rhino. These are detailed patterns that can help show materials beyond the standard hatch patterns. These patterns are meticulously crafted using real-world texture imagery and have been tested in Revit 2024, Rhino 8, and AutoCAD 2025.
If you use these in AutoCAD, ensure that you set the HPMAXLINES to the maximum value of 10000000.
Reach out if you have any questions, issues, or suggestions for my next series of hatches (stay tuned).
Features:
• Correct scale set to 1.00
• Based on real-world material imagery
• Detailed linework
• Model patterns for use in Revit
Hatch Pattern:

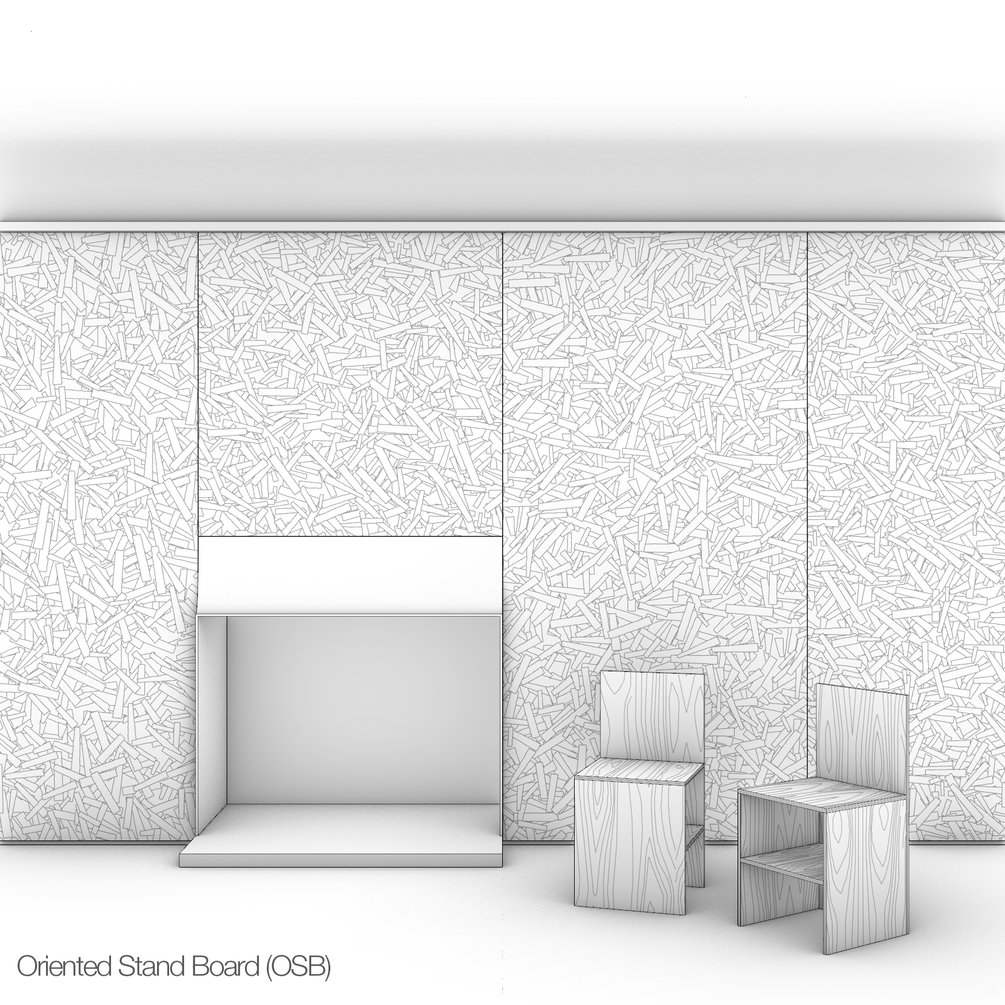

- Oriented Strand Board (OSB), 4' x 4' Seamless

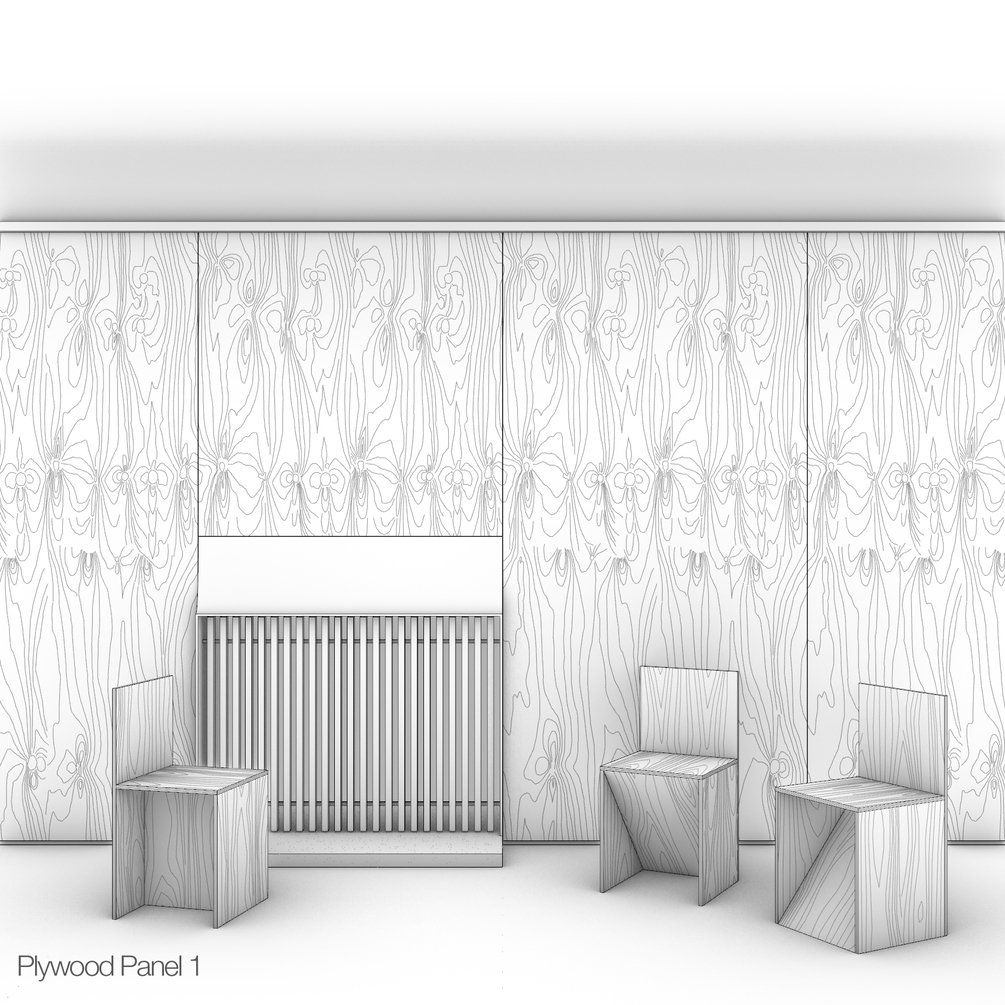

- Plywood Panel 1, 4' x 8' Panel

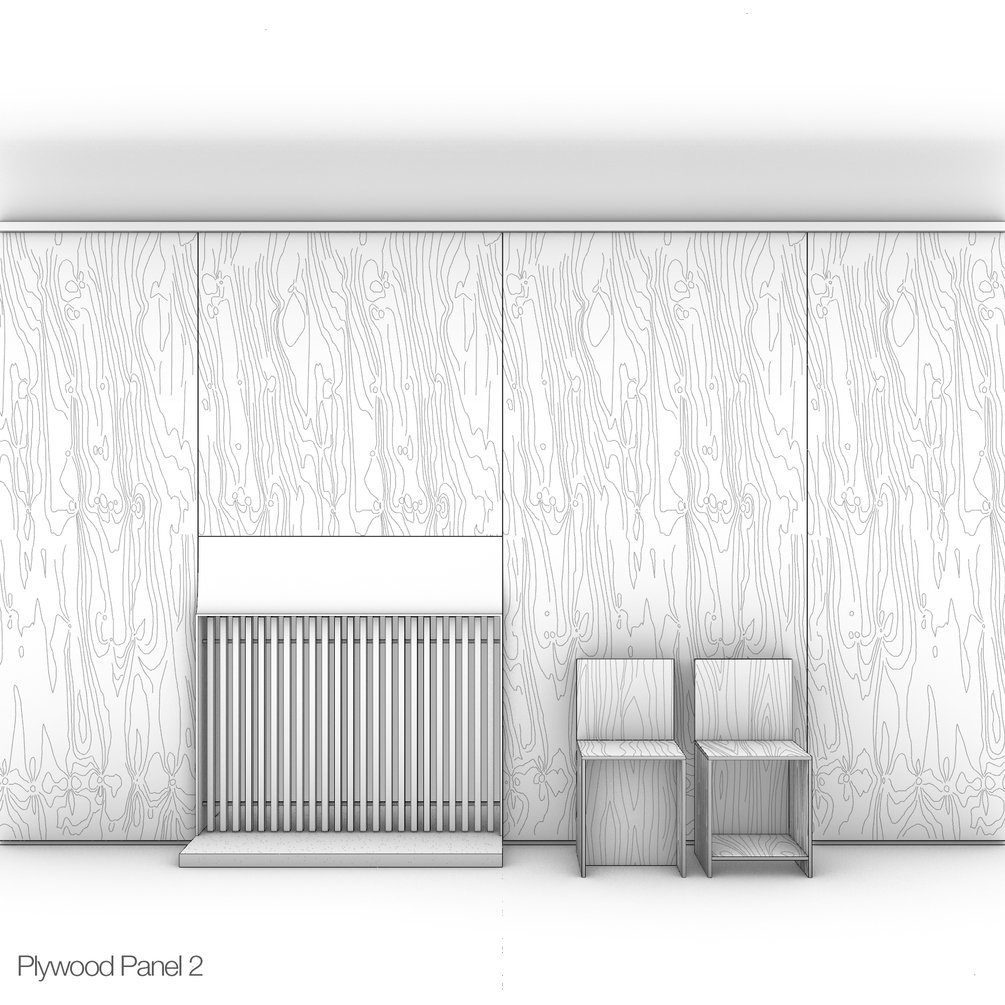

- Plywood Panel 2, 4' x 8' Panel

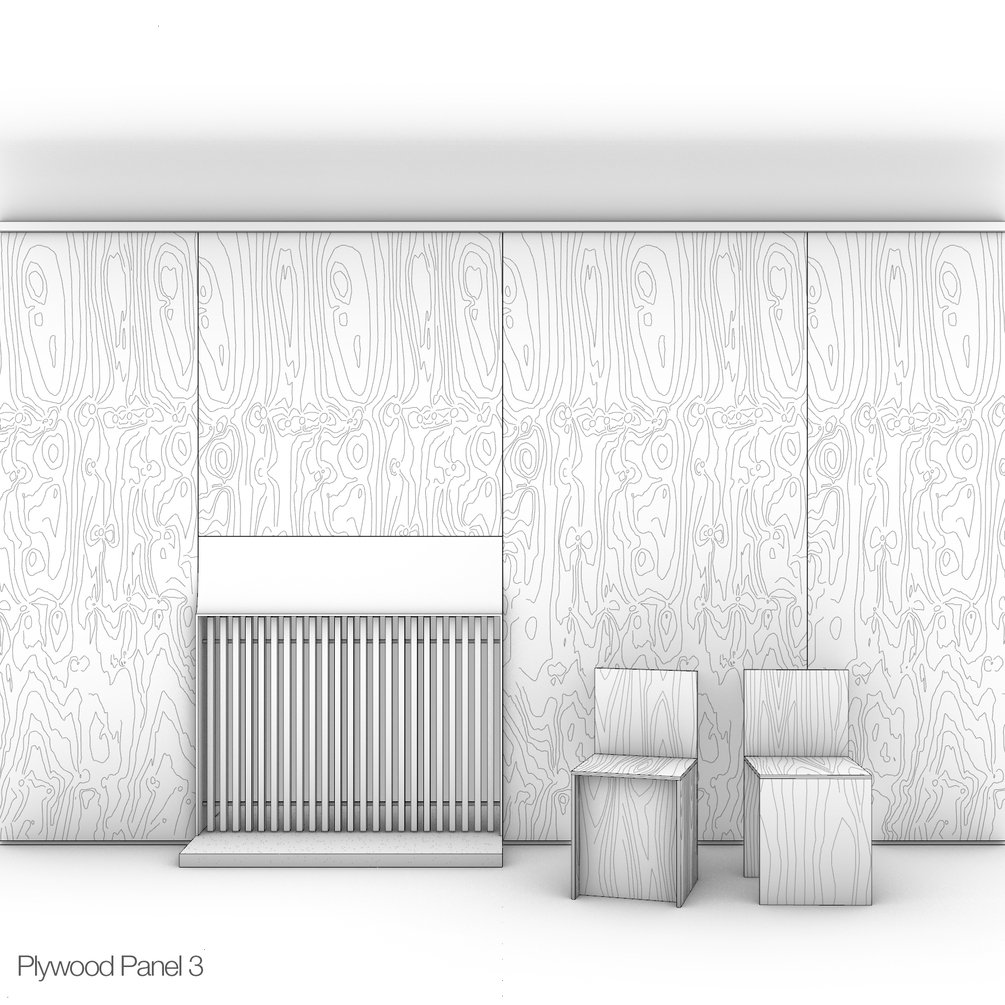

- Plywood Panel 3, 4' x 8' Panel

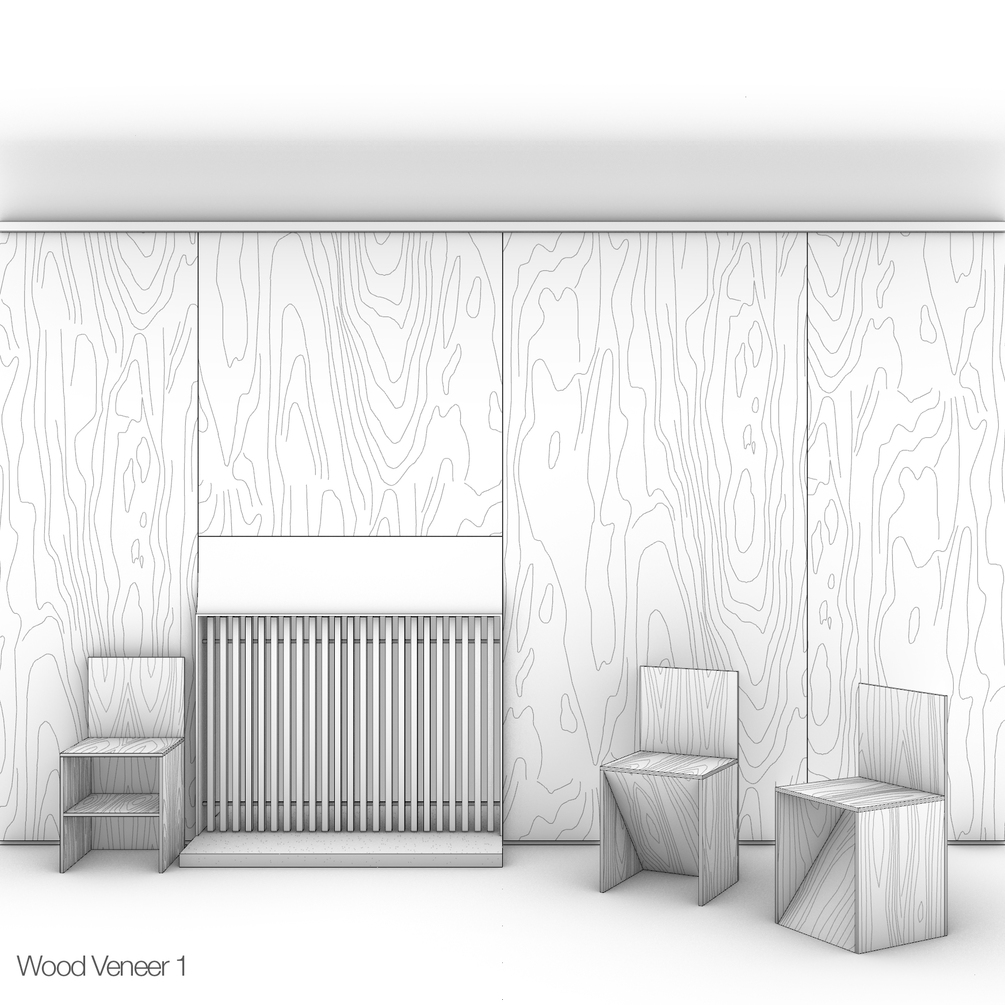

- Wood Veneer 1, 4' x 8' Seamless

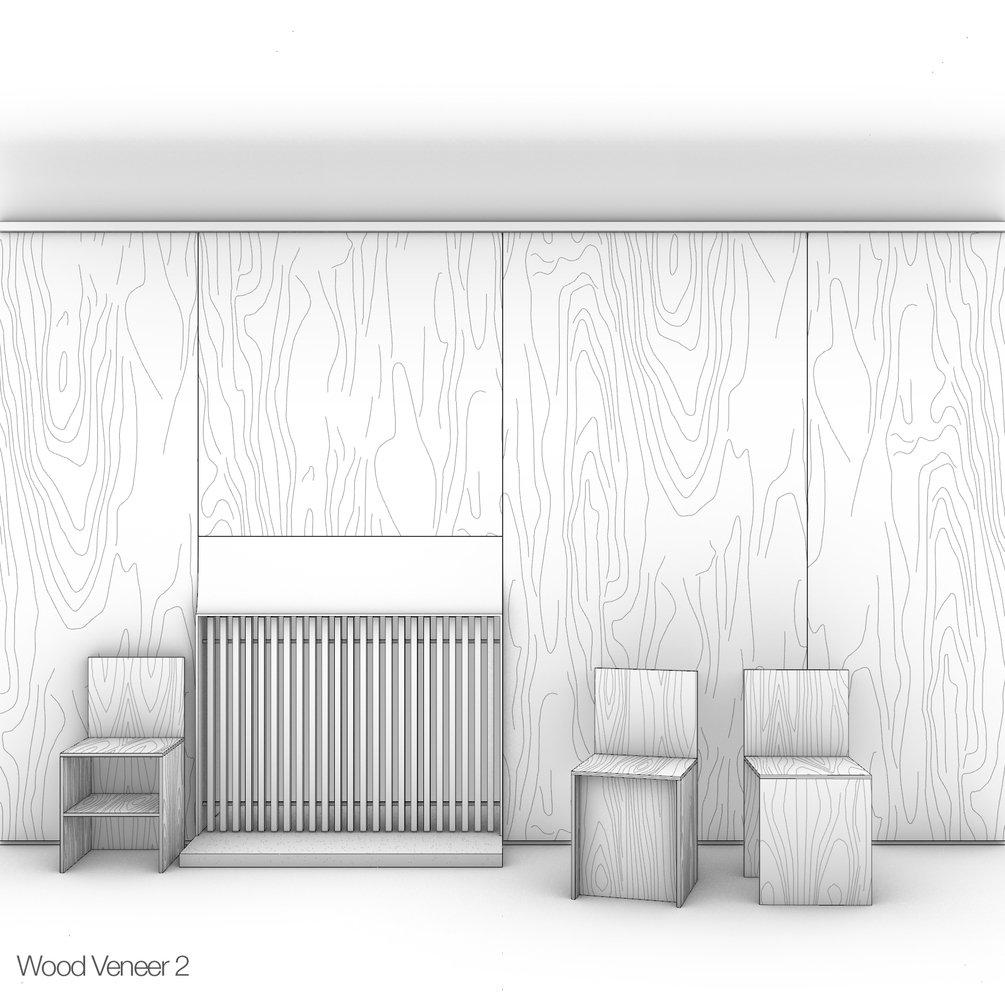

- Wood Veneer 2, 4' x 8' Seamless

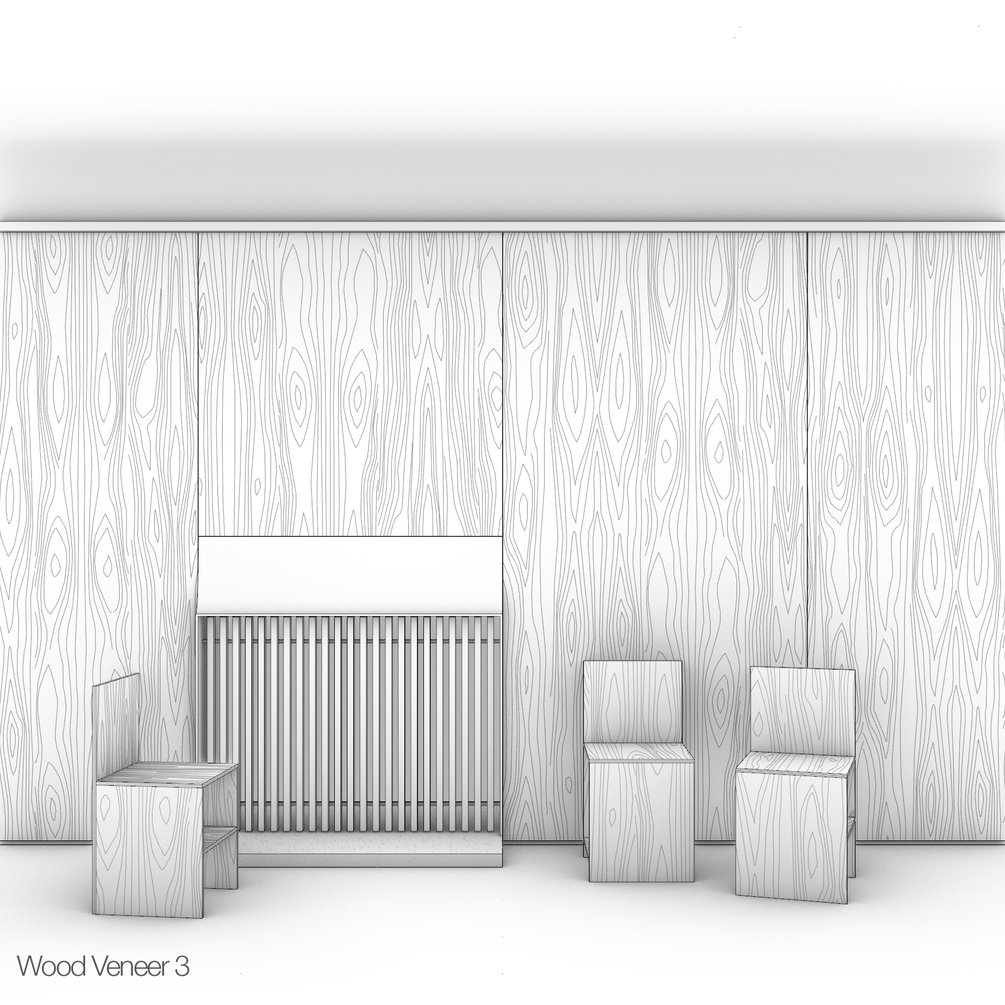

- Wood Veneer 3, 8' x 8' Seamless
The files only include the .pat files, not the scene you see in the included images
